4250

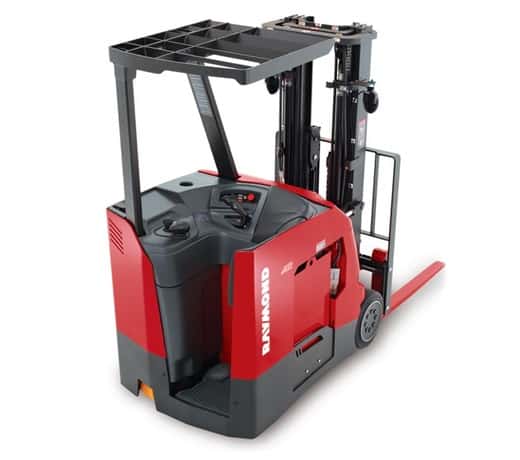

Stand up Forklift
An Economic, Ergonomic Powerhouse
The Raymond 4250 stand up forklift is engineered to take productivity to a whole new level—from the floor on up. This efficiently engineered stand up fork truck uses less energy than competing models, delivering a lower total cost of ownership. Your operators will appreciate the ergonomic features, from the smooth ride provided by the ComfortStance Suspension floor to the open view mast and single-axis control handle.
Additional Counterbalanced forklift options:
Stand up forklift: 3,000-4,000 lbs. capacity
Sit down forklift: 3,000-4,000 lbs. capacity
Sit down forklift: 3,000-12,000 lbs. capacity
Sit down forklift: 4,000-7,000 lbs. capacity
Sit down forklift: 8,000-11,000 lbs. capacity
- Battery: 36 volts
- Maximum Load: 3,000 lbs. to 5,000 lbs.
- Loaded and Unloaded Travel Speeds: 8.0 mph
Features
Eco-Performance
- ACR System
With Raymond’s exclusive ACR System, the 4150 Stand-Up Counterbalanced Fork Truck is equipped with quicker acceleration and industry-leading lift and travel speeds for your operation’s success. - Less Energy Usage
Raymond stand up fork trucks use less energy, deliver more uptime and require fewer battery charges and energy costs. - Faster Cycle Times
With Eco-Performance – Raymond’s unique design philosophy that increases productivity and efficiency – Raymond counterbalanced lift trucks deliver the performance and maneuverability you need to get more done. Third-party testing showed the 4250 stand up counterbalanced truck to have 9% faster cycle times than competing models.
Productivity
- Sideshift
The 4-inch sideshift provides sideways movement of the carriage, permitting a load to be picked up or put away even if it is not perfectly aligned with the truck. - Variable, Simultaneous Control Handle
Ensure better loading stability and move pallets faster and more efficiently. The variable speed lift/lower level is intuitive and easily accessible. - Excellent Visibility by Design
The 4250 Stand Up Forklift Truck allows for a clear view of the fork and load from the floor to the rack – with the angled front cover, open view mast and overhead guard design – for efficient material handling with less product and facility damage.
Maintainability
- Regenerative Braking
Maximizes heat dissipation, reducing maintenance and cost of ownership. - Convenient Service Access
The injection-molded polyethylene (PE) covers deliver longer life, service convenience and easy service access to components. - Electric Brakes
Dual electric disc brakes are easily located for convenient repairs and service access.
Ergonomics
- Comfortable Compartment
The ergonomically designed compartment and single, low-force deadman pedal reduce operator fatigue and enhance comfort. - ComfortStance Suspension
The innovated ComfortStance Suspension floor isolates operator from impacts for a smoother ride over dock-levelers and uneven floors and adjusts automatically to each operators weight. - Intuitive Controls
The single-axis control handle is designed for comfort and ease of use: simply push forward and the truck moves forward. Pull back and the truck reverses. The handle provides simultaneous control of travel, lift, load and horn functions.
Maneuverability
- Tight Right Angle Turns
Engineered to perform right-angle stacking maneuvers in less total area, with a battery compartment designed to work comfortably in 10 foot aisle widths.
Delivers smooth, precise handling with full-time traction and steering alignment
- Dual AC Drive Motors
Counter-rotating drive wheels help to execute tight turns. - Dual Steer Wheel Design
Dual drive and steer wheel design allow one wheel to counter-rotate during turns to provide greater maneuverability.
